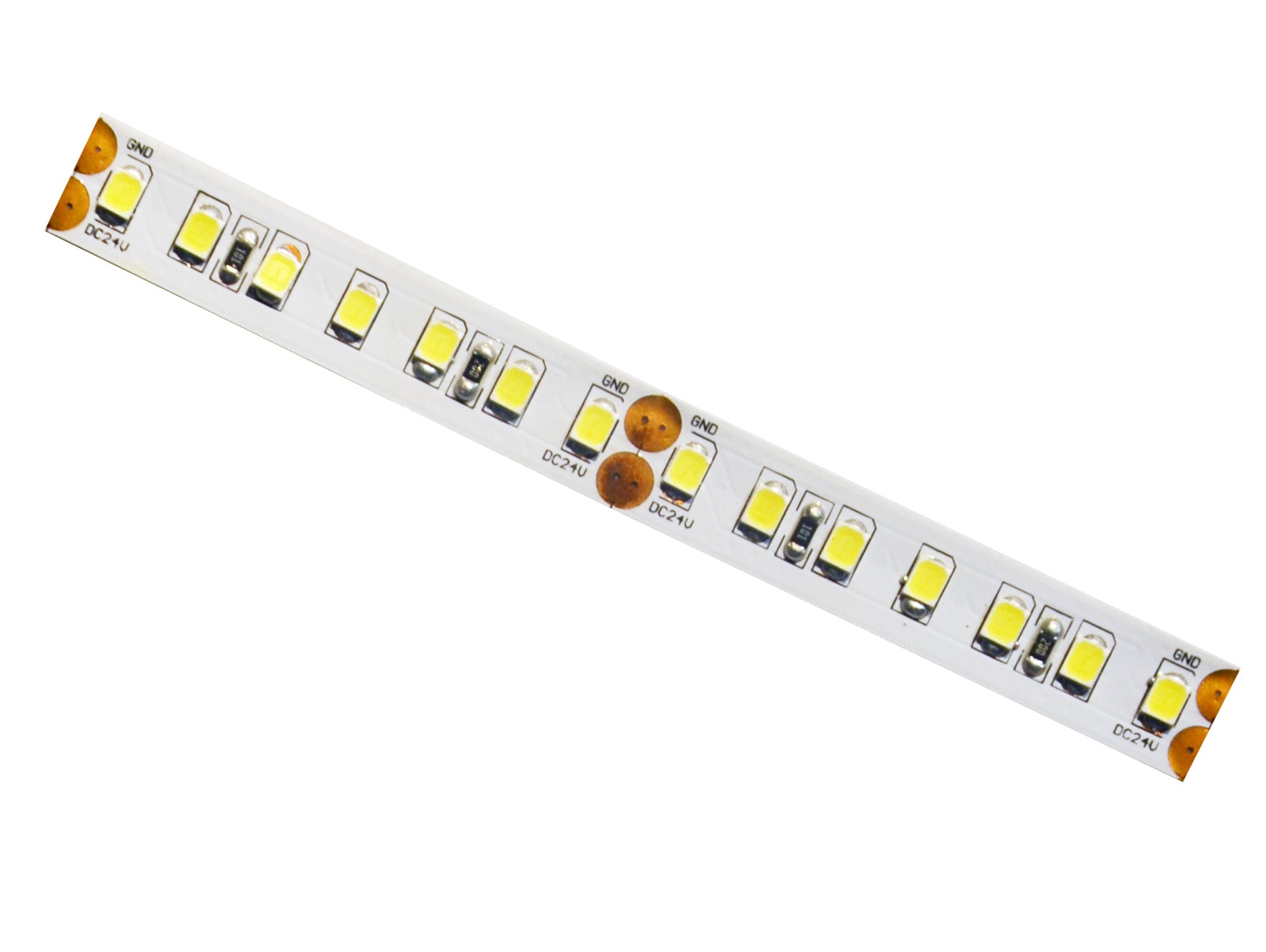

SMD2835 - 140leds/m-10mm

Feature / Warranty:

◆ Super bright leds, stable and reliable.
◆ High lumen output, can be 150lm/W, Ra80/Ra90/Ra95 available.
◆ High cost-effective compare with SMD3528/5050 strip.
◆ One BIN LED selection to ensure color consistency.
◆ CE/ROHS certification.
◆ Warranty: 3 years.

IP rate:



Model No.   CH-2835W140-5M-24V-K10
Step length (mm/x LED)   50mm/7LEDs
Number LED/m   140leds/m
Voltage (v)   24V
Ra   80 / 90 / 95
Beam Angle(º)   120º
Power (w/m)   14.4W/m
Light output (lm/m)   1590lm/m
FPC width (mm)   10mm
Color Temperature(CCT)   2200-7000K
Max. length per circuit (m)   5m
IP rate   20/65/66/67/68
Package 5Mts/Reel, Anti-Static Bag + Carton
Installation 3M Tape / Mounting Clips / Aluminum Profiles

  •  - 140leds/m-10mm
  • 140leds/m-10mm
Dimensions & available lengths
